Edge 20483A
3 Bed
2 Bath
960 Sq. Ft.
48' x 20'

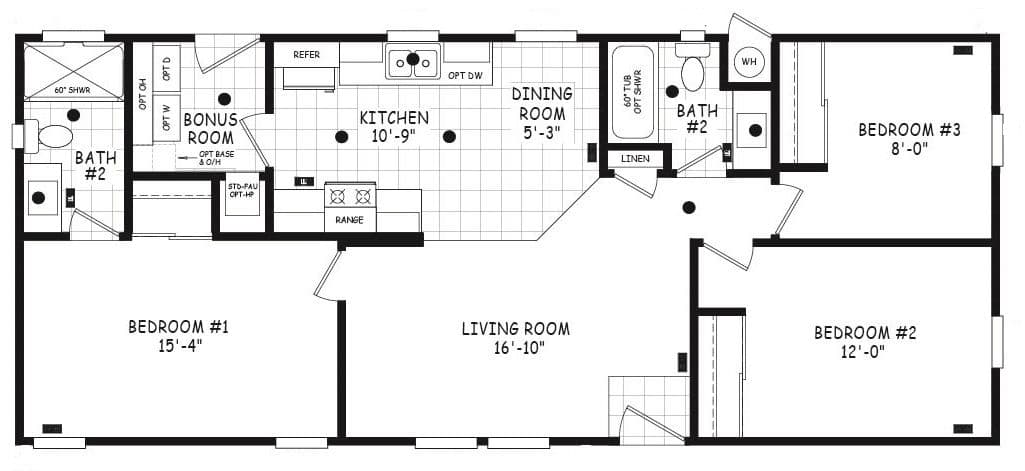

Floor Plan
Property map
Enter your address to check if this home fits on your property
Enter an address to find homes that fit your lot
Exterior & Construction
- Solid I-Beam Frame Construction with Corrosion Resistant Undercoating
- Sealed Floor Duct System and Water Lines Installed Inside R-22 Rated Fiberglass Blanket Insulation under Subfloor
- 5/8 Inch Floor Decking
- 30# Roof Load
- 2” x 6” Subfloor Construction with Joists Spaced 16” On Center
- Shut-Off Valves on all Water Fixtures
- 2” x 4” Exterior Wall Construction with Studs Spaced 16” On Center and R-11 Rated Fiberglass Insulation, 2X Top and Bottom Plates
- 96” Exterior Sidewall Height
- 100 Amp Electric Service with Copper Wiring and Interior Panel Box
- Gas Auto Ignition Furnace with Toe Kick Registers in Kitchen and Bathrooms (N/A some locations)
- 40 Gallon Electric Water Heater
- Class A Rated Shingles
- R-30 Rated Blown Cellulous Roof Insulation
- Vertical Cement or LP Siding
- Large White Vinyl Framed Dual-Paned Windows with Locks per Plan
- Bathroom Windows per Plan
- Residential 80” Insulated Front Door with Deadbolt, Residential 9-Lite Rear Door with Deadbolt
- Exterior Lights at Front and Rear Doors
- 6” Roof Eaves on Side Walls, 12” Front and Rear Overhangs
- Exterior GFCI Electric Outlet
- Solid I-Beam Frame Construction with Corrosion Resistant Undercoating
- Sealed Floor Duct System and Water Lines Installed Inside R-22 Rated Fiberglass Blanket Insulation under Subfloor
- 5/8 Inch Floor Decking
- 30# Roof Load
- 2” x 6” Subfloor Construction with Joists Spaced 16” On Center
- Shut-Off Valves on all Water Fixtures
- 2” x 4” Exterior Wall Construction with Studs Spaced 16” On Center and R-11 Rated Fiberglass Insulation, 2X Top and Bottom Plates
- 96” Exterior Sidewall Height
- 100 Amp Electric Service with Copper Wiring and Interior Panel Box
- Gas Auto Ignition Furnace with Toe Kick Registers in Kitchen and Bathrooms (N/A some locations)
- 40 Gallon Electric Water Heater
- Class A Rated Shingles
- R-30 Rated Blown Cellulous Roof Insulation
- Vertical Cement or LP Siding
- Large White Vinyl Framed Dual-Paned Windows with Locks per Plan
- Bathroom Windows per Plan
- Residential 80” Insulated Front Door with Deadbolt, Residential 9-Lite Rear Door with Deadbolt
- Exterior Lights at Front and Rear Doors
- 6” Roof Eaves on Side Walls, 12” Front and Rear Overhangs
- Exterior GFCI Electric Outlet
Kitchen
- 31” City Scape Kitchen Overhead Cabinets with Finished Interiors, Adjustable Shelves, and Crown Molding
- Hardwood Cabinet Doors with Choice of Hardware
- Drawer Over Door Cabinet Construction in Kitchen with Steel Drawer Guides
- High-Pressure Laminate Countertops
- Crescent Countertop Edging Throughout
- 6” Laminate Backsplashes Throughout
- Elegant Deep Stainless Steel Kitchen Sink with Single Lever Pullout Faucet
- GE® 17 Cubic Foot Double-Door Frost-Free Refrigerator with Icemaker
- GE® 30” Deluxe Self-Cleaning Free-Standing Gas Range
- Utility Overhead Shelf at Washer and Dryer Area in Bonus Room
- 31” City Scape Kitchen Overhead Cabinets with Finished Interiors, Adjustable Shelves, and Crown Molding
- Hardwood Cabinet Doors with Choice of Hardware
- Drawer Over Door Cabinet Construction in Kitchen with Steel Drawer Guides
- High-Pressure Laminate Countertops
- Crescent Countertop Edging Throughout
- 6” Laminate Backsplashes Throughout
- Elegant Deep Stainless Steel Kitchen Sink with Single Lever Pullout Faucet
- GE® 17 Cubic Foot Double-Door Frost-Free Refrigerator with Icemaker
- GE® 30” Deluxe Self-Cleaning Free-Standing Gas Range
- Utility Overhead Shelf at Washer and Dryer Area in Bonus Room
Bathroom
- 36” High Bathroom Lavies
- Fiberglass Stall Shower with Glass Enclosure in Primary Bathroom
- One-Piece Fiberglass Tub/Shower in Main Bathroom
- Elongated Water Saver Commodes
- 36” High Bathroom Lavies
- Fiberglass Stall Shower with Glass Enclosure in Primary Bathroom
- One-Piece Fiberglass Tub/Shower in Main Bathroom
- Elongated Water Saver Commodes
Interior
- Congolium Linoleum Floor Covering in Kitchen, Bathrooms, Utility Room, Including Entryway (Per Plan)
- Grade 1 Carpet and ½” Pad
- Dining Room Chandelier, Bedroom Ceiling Lights, and Bathroom Ceiling Lights
- 8’ Flat Ceilings Throughout Entire Home with Knockdown Textured Finish
- 2 x 4 Interior Walls Throughout
- 80” Tall Raised Panel Interior Passage Doors & Lever Handles
- 5/8” Thick Interior Door Jambs with Profiled Door Casing
- 5011 Baseboards in Wet Areas
- 2” White Faux Wood Blinds Throughout
- Wood Closet Shelving and Poles in All Wardrobes and Closets
- 2 Recessed Can Lights in Kitchen
- White Interior Paint
- Ceiling Fan Ready in Living Room and Primary Bedroom
- Congolium Linoleum Floor Covering in Kitchen, Bathrooms, Utility Room, Including Entryway (Per Plan)
- Grade 1 Carpet and ½” Pad
- Dining Room Chandelier, Bedroom Ceiling Lights, and Bathroom Ceiling Lights
- 8’ Flat Ceilings Throughout Entire Home with Knockdown Textured Finish
- 2 x 4 Interior Walls Throughout
- 80” Tall Raised Panel Interior Passage Doors & Lever Handles
- 5/8” Thick Interior Door Jambs with Profiled Door Casing
- 5011 Baseboards in Wet Areas
- 2” White Faux Wood Blinds Throughout
- Wood Closet Shelving and Poles in All Wardrobes and Closets
- 2 Recessed Can Lights in Kitchen
- White Interior Paint
- Ceiling Fan Ready in Living Room and Primary Bedroom
Images of homes are solely for illustrative purposes and should not be relied upon. Images may not accurately represent the actual condition of a home as constructed, and may contain options which are not standard on all homes.
Edge 20483A
$99,900
3 bedrooms (sleeps 3-6)
2 full bathrooms
960 sq. ft.
48' x 20'
ADU eligible
Edge 20483A
$99,900
3 bedrooms (sleeps 3-6)
2 full bathrooms
960 sq. ft.
48' x 20'
ADU eligible
Cavco West Edge standard features
Construction
- Solid I-Beam Frame Construction with Corrosion Resistant Undercoating
- Sealed Floor Duct System and Water Lines Installed Inside R-22 Rated Fiberglass Blanket Insulation under Subfloor
- 5/8 Inch Floor Decking
- 30# Roof Load
- 2” x 6” Subfloor Construction with Joists Spaced 16” On Center
- Shut-Off Valves on all Water Fixtures
- 2” x 4” Exterior Wall Construction with Studs Spaced 16” On Center and R-11 Rated Fiberglass Insulation, 2X Top and Bottom Plates
- 96” Exterior Sidewall Height
- 100 Amp Electric Service with Copper Wiring and Interior Panel Box
- Gas Auto Ignition Furnace with Toe Kick Registers in Kitchen and Bathrooms (N/A some locations)
- 40 Gallon Electric Water Heater
- Class A Rated Shingles
- R-30 Rated Blown Cellulous Roof Insulation
- Solid I-Beam Frame Construction with Corrosion Resistant Undercoating
- Sealed Floor Duct System and Water Lines Installed Inside R-22 Rated Fiberglass Blanket Insulation under Subfloor
- 5/8 Inch Floor Decking
- 30# Roof Load
- 2” x 6” Subfloor Construction with Joists Spaced 16” On Center
- Shut-Off Valves on all Water Fixtures
- 2” x 4” Exterior Wall Construction with Studs Spaced 16” On Center and R-11 Rated Fiberglass Insulation, 2X Top and Bottom Plates
- 96” Exterior Sidewall Height
- 100 Amp Electric Service with Copper Wiring and Interior Panel Box
- Gas Auto Ignition Furnace with Toe Kick Registers in Kitchen and Bathrooms (N/A some locations)
- 40 Gallon Electric Water Heater
- Class A Rated Shingles
- R-30 Rated Blown Cellulous Roof Insulation
Exterior
- Vertical Cement or LP Siding
- Large White Vinyl Framed Dual-Paned Windows with Locks per Plan
- Bathroom Windows per Plan
- Residential 80” Insulated Front Door with Deadbolt, Residential 9-Lite Rear Door with Deadbolt
- Exterior Lights at Front and Rear Doors
- 6” Roof Eaves on Side Walls, 12” Front and Rear Overhangs
- Exterior GFCI Electric Outlet
- Vertical Cement or LP Siding
- Large White Vinyl Framed Dual-Paned Windows with Locks per Plan
- Bathroom Windows per Plan
- Residential 80” Insulated Front Door with Deadbolt, Residential 9-Lite Rear Door with Deadbolt
- Exterior Lights at Front and Rear Doors
- 6” Roof Eaves on Side Walls, 12” Front and Rear Overhangs
- Exterior GFCI Electric Outlet
Interior
- Congolium Linoleum Floor Covering in Kitchen, Bathrooms, Utility Room, Including Entryway (Per Plan)
- Grade 1 Carpet and ½” Pad
- Dining Room Chandelier, Bedroom Ceiling Lights, and Bathroom Ceiling Lights
- 8’ Flat Ceilings Throughout Entire Home with Knockdown Textured Finish
- 2 x 4 Interior Walls Throughout
- 80” Tall Raised Panel Interior Passage Doors & Lever Handles
- 5/8” Thick Interior Door Jambs with Profiled Door Casing
- 5011 Baseboards in Wet Areas
- 2” White Faux Wood Blinds Throughout
- Wood Closet Shelving and Poles in All Wardrobes and Closets
- 2 Recessed Can Lights in Kitchen
- White Interior Paint
- Ceiling Fan Ready in Living Room and Primary Bedroom
- Congolium Linoleum Floor Covering in Kitchen, Bathrooms, Utility Room, Including Entryway (Per Plan)
- Grade 1 Carpet and ½” Pad
- Dining Room Chandelier, Bedroom Ceiling Lights, and Bathroom Ceiling Lights
- 8’ Flat Ceilings Throughout Entire Home with Knockdown Textured Finish
- 2 x 4 Interior Walls Throughout
- 80” Tall Raised Panel Interior Passage Doors & Lever Handles
- 5/8” Thick Interior Door Jambs with Profiled Door Casing
- 5011 Baseboards in Wet Areas
- 2” White Faux Wood Blinds Throughout
- Wood Closet Shelving and Poles in All Wardrobes and Closets
- 2 Recessed Can Lights in Kitchen
- White Interior Paint
- Ceiling Fan Ready in Living Room and Primary Bedroom
Kitchen
- 31” City Scape Kitchen Overhead Cabinets with Finished Interiors, Adjustable Shelves, and Crown Molding
- Hardwood Cabinet Doors with Choice of Hardware
- Drawer Over Door Cabinet Construction in Kitchen with Steel Drawer Guides
- High-Pressure Laminate Countertops
- Crescent Countertop Edging Throughout
- 6” Laminate Backsplashes Throughout
- Elegant Deep Stainless Steel Kitchen Sink with Single Lever Pullout Faucet
- GE® 17 Cubic Foot Double-Door Frost-Free Refrigerator with Icemaker
- GE® 30” Deluxe Self-Cleaning Free-Standing Gas Range
- Utility Overhead Shelf at Washer and Dryer Area in Bonus Room
- 31” City Scape Kitchen Overhead Cabinets with Finished Interiors, Adjustable Shelves, and Crown Molding
- Hardwood Cabinet Doors with Choice of Hardware
- Drawer Over Door Cabinet Construction in Kitchen with Steel Drawer Guides
- High-Pressure Laminate Countertops
- Crescent Countertop Edging Throughout
- 6” Laminate Backsplashes Throughout
- Elegant Deep Stainless Steel Kitchen Sink with Single Lever Pullout Faucet
- GE® 17 Cubic Foot Double-Door Frost-Free Refrigerator with Icemaker
- GE® 30” Deluxe Self-Cleaning Free-Standing Gas Range
- Utility Overhead Shelf at Washer and Dryer Area in Bonus Room
Bathroom
- 36” High Bathroom Lavies
- Fiberglass Stall Shower with Glass Enclosure in Primary Bathroom
- One-Piece Fiberglass Tub/Shower in Main Bathroom
- Elongated Water Saver Commodes
- 36” High Bathroom Lavies
- Fiberglass Stall Shower with Glass Enclosure in Primary Bathroom
- One-Piece Fiberglass Tub/Shower in Main Bathroom
- Elongated Water Saver Commodes
